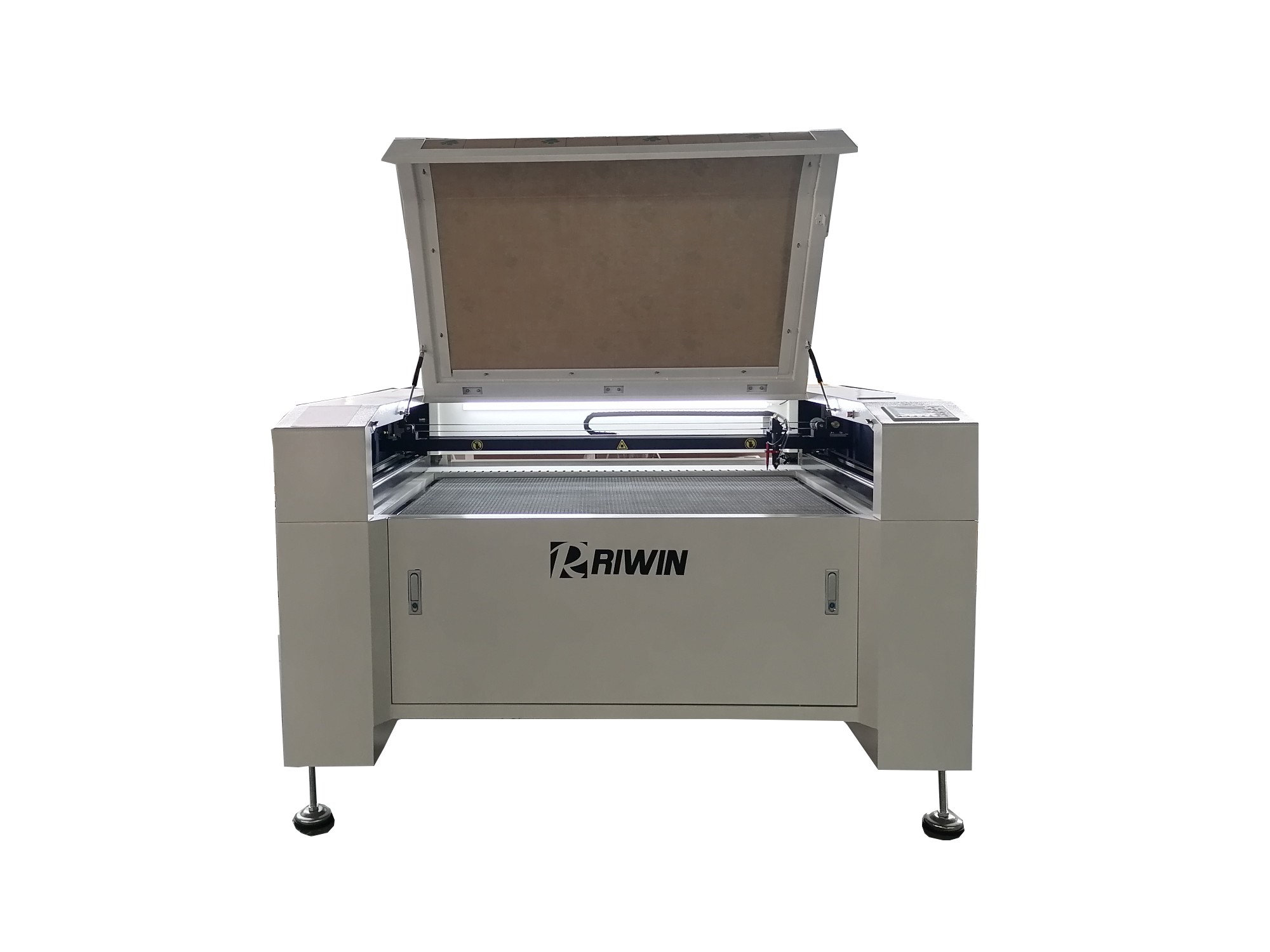

RW 1390 laser cutting machine

1.Working area:1300*900mm
2.RDCAM controller
3.honeycomb/blade working table
4.EFR/RECI /YONGLI Laser tube
5.Red light location

1390 co2 Laser cutting machine

1.Application:

Applicable Materials:non-metal like acrylic, wood , leather, paper, plexiglax, rubber etc.

Applicable Industries: Rubber,plastic,clothtoys,leather, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration,packaging and printing, paper products.

2.Machine features:

1.Adopt Ruida system can support for multiple languages, color layering,off line work etc, easy to operate..

2.EFR Brand laser tube,ten months of global warranty, laser tube life of 6000 hours.

3.Special designed for loading plate,Long material can be placed in front and back side, easy to load plate.

3.Technical parameters:

1	Application:	Laser engraving and cuttingmachine
2	Power	60W/80W100W/130W/150W
3	Working area	600400/900600/1000800/13001000/1600*1000mm
4	Tube Brand	RECI/EFR/YONGLI
5	Power Supply	110V/220V 50HZ/60HZ
6	Min line width	≤0.15mm
7	Positon accuracy	0.01mm
8	Repetition accuracy	0.02mm
9	DPI	1000 DPI
10	Smallest Character Engraving	Character2.0mm×2.0mm, English 1.0mm×1.0mm
11	Guide rail	PMI/Shac from 15mm Taiwan (X-axis, Y-axis)
12	Transmission method	Belt Transmission
13	Drive system	Leadshine driving system
14	Mainboard	RUIDA 6445/6442
15	Control software	RUIDA-V8,Coreldraw, Photoshop, AutoCAD, etc
16	Cooling method	Water cooling
17	Working environment	0-45℃
18	Working table	Honey comb/ Knief/up and down/Electric lifting
