CO2 laser marking machine 20w 30w 50w

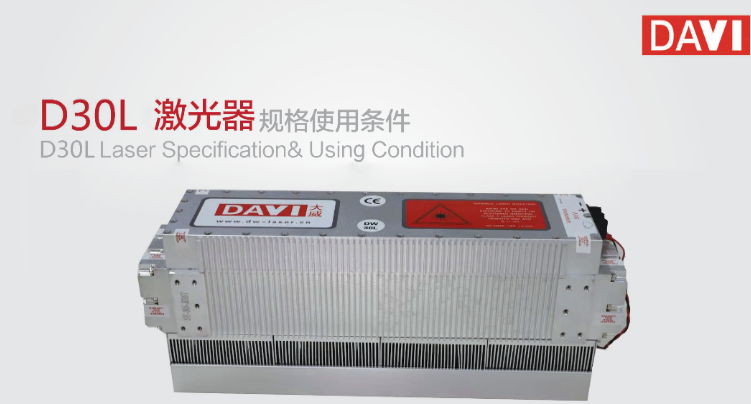

DAVI  laser source

We cooperated with DAVI laser source companies. Very good quality with competetive price,greatly   improve the stability and service life of the marking machine.

High-speed Galvanometer Marking speed of   fiber laser engraving machine is faster, reducing marking time and improving   work efficiency, speed up to 7000mm/s.

EZCAD   control card

 1. Each piece has a sole serial   No,to check to avoid fake

2. It can install the drive to connect the rotating shaft. Genuine EZCAD   control system compatible with win7/8/10 xp

Preferred Lens

fiber laser engraving machine use higher   concentration, smaller size, thinner beam and more powerful energy.

Marking System EZCAD

The fiber laser engraving machine uses   China's most powerful marking system software EZCAD to provide customers with   more functions and Easier to use.

                    Spare parts for fiber  laser marking machine

Wrench

1pcs

Usb cables

1pcs

Foot switch

1pcs

Google glasses

1pc

U disk

1pc

Laser wavelength

355nm

Laser type

Fiber Laser

Laser beam quality

M2:1.5

Repeat Frequency

20KHz-80KHz

Repeat Positioning Accuracy

0.005mm

Min linear width

0.01mm

Marking Depth

0.01-0.5mm

Standard Marking Area

110×110mm

Optional Marking Area

70×70mm--300×300mm

Rated Power Consumption

less 500W

Operating Voltage

220V/50Hz/15A

Graphic formate supported

PLT, BMP, JPG, PNG, TIP, PCX,   TGA, ICO. DXF,etc

Working temperature

5-35 centigrade

Cooling

Air Cooling
