RW 7050 laser cutting machine

1.Working area:700*500 mm
2.RDCAM controller
3.honeycomb/blade working table
4.EFR/RECI /YONGLI Laser tube
5.Red light location,auto-focus system
6.High-speed inner slide
7.Built-in water circulation cooling system

                                    7050 co2 Laser cutting machine



1.Application:

Applicable Materials:non-metal like acrylic, wood , leather, paper, plexiglax, rubber etc.

Applicable Industries: Rubber,plastic,clothtoys,leather, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration,packaging and printing, paper products.


2.Machine features:

1.Adopt Ruida system can support for multiple languages, color layering,off line work etc, easy to operate..

2.EFR Brand laser tube,ten months of global warranty, laser tube life of 6000 hours.

3.Special designed for loading plate,Long material can be placed in front and back side, easy to load plate.

4.Adopt high-speed inner slide rail, fast running speed, high friction coefficient and low noise in positioning accuracy.

5.The laser head adopts flying optical path, unique optical structure design, small optical path deviation, high stability and easy adjustment.

6.The built-in water circulation cooling system is adopted, which saves space, has high efficiency and is easy to operate.

7.Using automatic positioning and lifting system, the mobile space is 20 cm.


3.Technical parameters:

1

Application:

Laser engraving machine

2

Power

60W/80W/130W

3

Working area

700*500/900*600/1400*900mm

4

Tube Brand

RECI/EFR/YONGLI

5

Power Supply

110V/220V   50HZ/60HZ

6

Min line width

≤0.15mm

7

Positon accuracy

0.01mm

8

Repetition accuracy

0.02mm

9

DPI

1000 DPI

10

Smallest Character Engraving

Character2.0mm×2.0mm, English   1.0mm×1.0mm

11

Guide rail

PMI/Shac from 15mm Taiwan (X-axis,   Y-axis)

12

Transmission method

Belt Transmission

13

Drive system

Leadshine driving system

14

Mainboard

RUIDA 6445/6442

15

Control software

RUIDA-V8,Coreldraw, Photoshop,   AutoCAD, etc

16

Cooling method

Water cooling

17

Working environment

0-45℃

18

Working table

Honey comb/ Knief/up and down/Electric   lifting

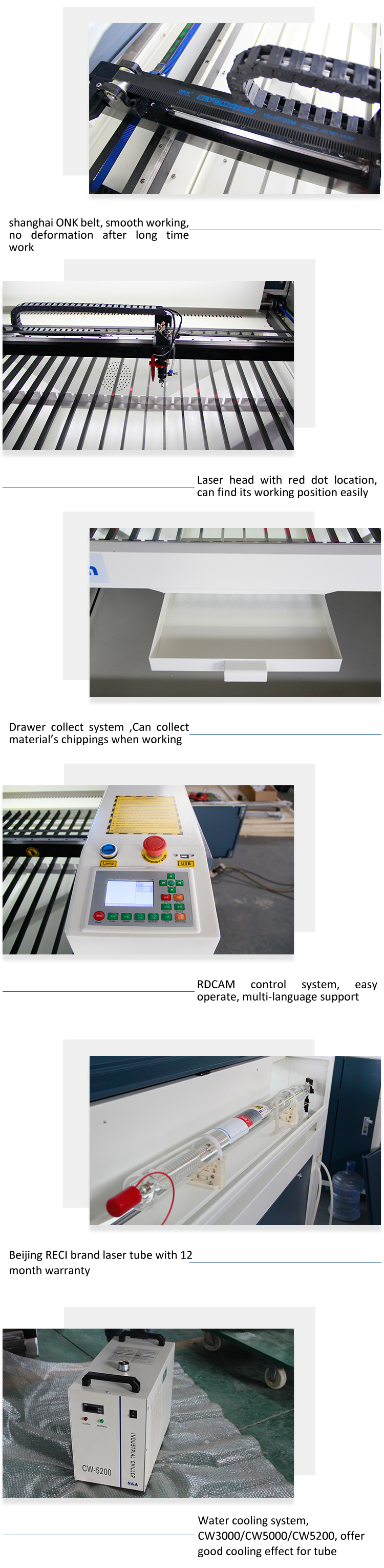

4.Machine display:

1390 laser.jpg

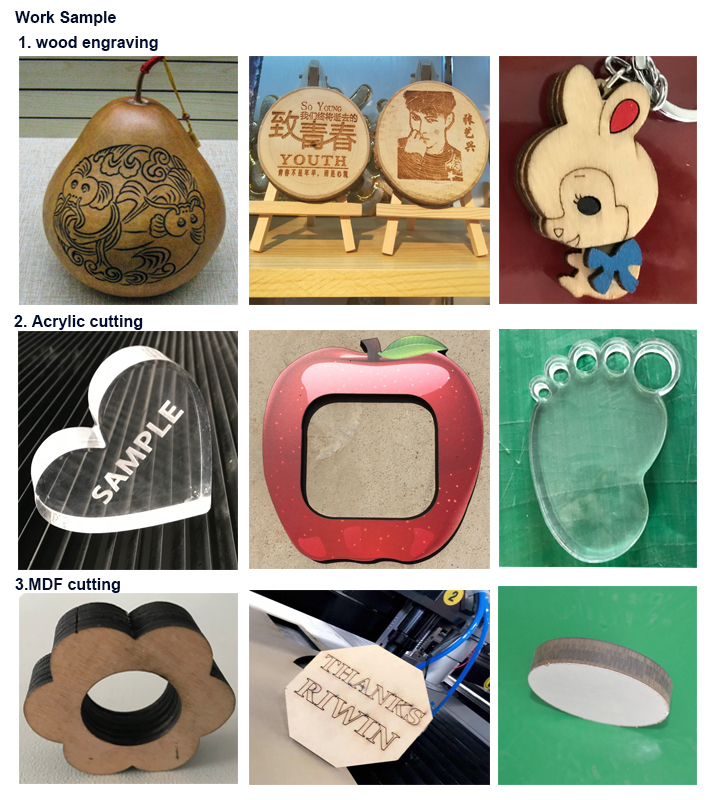

5.Samples:


laser machine sample.jpg

6.Machine warranty:

1.Whole machine two years warranty.

2.Main parts(excluding the consumables) can be changed free  if there is any problem during the warranty period.

3.Our engineer install machine oversea.
